DJI M350RTK

SPH integrated systems are compatible with DJI M300RTK, DJI M350RTK, and custom-built UAV based on the DJI A3 flight controller.

Having the right drone package for your industrial sensor system will mean you’re ready to fly effective missions. These two platforms from DJI are fully supported by SPH Engineering. For further information on our compatible drones, get in touch.

The DJI M350RTK is the successor to the M300RTK and provides our sensor bundles with the perfect UAV platform. The UAV provides ample payload options boasting compatibility with the majority of sensors. Switch to reviewing our sensor payloads HERE.

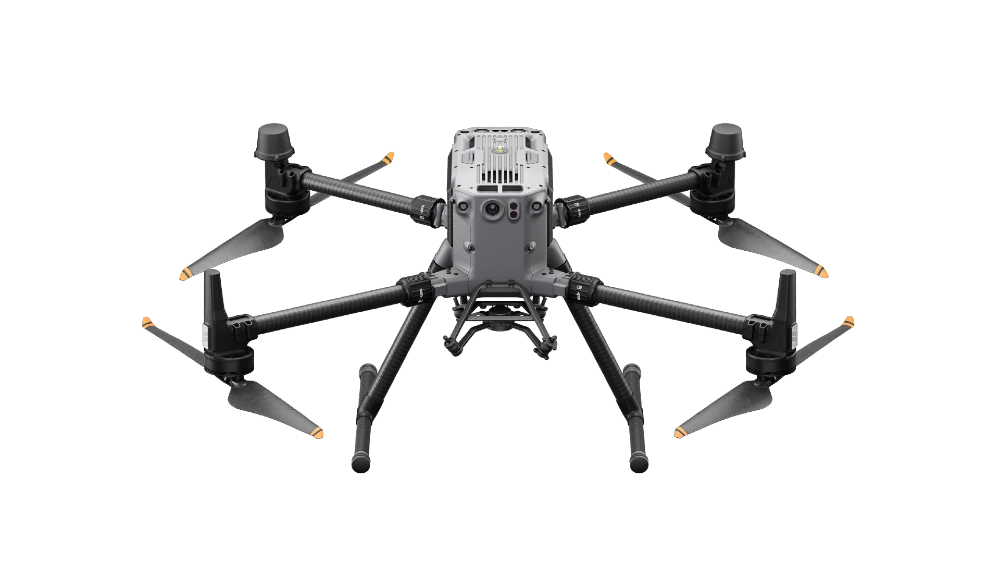

The DJI MATRICE™ 350 RTK (M350 RTK) is a powerful industrial aircraft platform that features an advanced flight controller system, six directional sensing and positioning systems, and a night-vision FPV camera. The M350 RTK supports DJI CSM Radar and is compatible with DJI DGC2.0 connector gimbals, up to three independent gimbals, and several SDK expansion ports. The safety beacons on both the top and the bottom of the aircraft allow the aircraft to be identified at night or in low-light conditions. The auxiliary lights help the vision positioning system achieve better performance at night or in low-light conditions.

The flight time of M350 RTK is up to 55 minutes without a payload with the new TB65 dual-battery system. The battery can charged up to 400 cycles, reducing the cost of a single flight. High accuracy Surveying and Mapping is available when used with the DJI ZENMUSE L1/P1.

The DJI RC Plus remote controller features 03 Enterprise, the latest version of DJI’s signature OCUSYNC™ video transmission technology, and can transmit a live HD view from the camera of an aircraft to display on the touchscreen. The remote controller has a 7.02-inch high-brightness 1200 cd/m2 touchscreen with a resolution of 1920×1200 pixels. The Android operating system comes with a variety of functions such as GNSS, Wi-Fi, and Bluetooth. The remote controller comes with a wide range of function buttons as well as customizable buttons, which can easily control the aircraft and operate the camera. The remote controller supports 65W fast charging and has a maximum operating time of 3 hours 18 minutes with the internal battery and up to 6 hours when used with an external WB37 Intelligent Battery. The remote controller has a protection rating of IP54 (IEC 60529).

Both the aircraft system and the sensor system of the M350 RTK adopt a redundancy design to ensure flight safety. The added arm lock detection function can avoid the risk of unlocked arm sleeves. The FPV camera can clearly present the surroundings and obstacles during flight at night. The M350 RTK is designed with a six-directional binocular vision system and an infrared sensing system for six-directional awareness, positioning, and obstacle-sensing capabilities, providing comprehensive protection during flight. With the CSM Radar installed, M350 RTK can detect subtle obstacles upward or within the horizontal 360º range and avoid them in time.

The built-in RTK module provides high accuracy of positioning. The IP rating of M350 RTK is IP55, and it is waterproof even when the aircraft arms are folded. The built-in DJI AirSense system detects nearby aircraft in the surrounding airspace, providing alerts in the DJI Pilot 2 app to ensure safety. Intelligent functions: when using Al Spot Check, M350 RTK can generate and store flight route files that can be used at any time to realize automated operation and make repetitive inspections after taking photos of subjects. A PinPoint can be added for a target to select a point of interest in the gimbal camera view, and the longitude and latitude can be recorded and shared.

M350 RTK supports Waypoint, Mapping, Oblique, and Linear Flight Missions. With DJI Terra, users can quickly obtain HD 2D and 3D digital results, enabling high-precision and high-efficiency mapping operations. Multi-Payload Support: the M350 RTK supports a single downward gimbal, dual downward gimbals, and a single upward gimbal, meeting the needs of different operation scenarios. The E-Port open interface can shorten the development time sharply, and the three payload ports support DJI Payload SDK to expand application fields.

For more information on how this drone and its opical payloads (L1/L2 Lidars, P1 – Photogrammetry Camera, or H20 – Thermal Cameras), can be used to compliment our range of sensors, get in touch. Link to the official DJI website HERE to watch a video of the M350RTK and to explore the world of drone technology from DJI.
