DJI Matrice 400 – M400 Drone for Precision Mapping & Surveying

The SkyHub 3 fully supports the new DJI Matrice M400 drone

Having the right drone package for your industrial sensor system will mean you’re ready to fly effective missions. Whether you already have a DJI M350 RTK or you are on the lookout for a new DJI M400 drone, we can help. Get in touch.

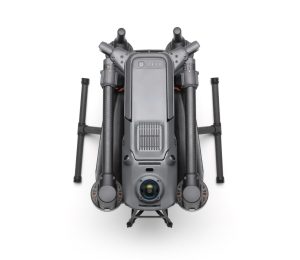

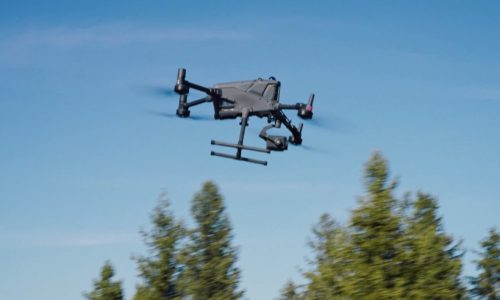

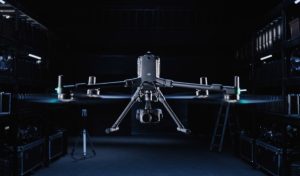

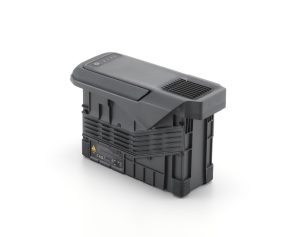

DJI Matrice M400, the enterprise flagship drone platform, boasts an impressive 59-minute flight time with a payload capacity of up to 6 kg in zero wind conditions. This figure holds true for a new TB100 battery charged to 100% and discharged to 0%. The M400 also comes with an integrated rotating LiDAR and mmWave radar for power-line-level obstacle sensing and supports the O4 Enterprise Enhanced Video Transmission and Airborne Relay Video Transmission, ensuring safer handling and easier operations. Combining Smart Detection with visible and thermal imaging, AR projection, ship-based takeoff/landing, and advanced automation, Matrice 400 excels in emergency response, power inspections, mapping, and AEC.

Fight Time

The DJI Matrice M400’s flight capabilities are outstanding, offering up to 59 minutes of forward flight time even with a payload of over 1 kg and up to 53 minutes of hovering duration. The M400 can also sustain a flight time of more than 45 minutes with a payload of 2.7 kg. These capabilities make it a reliable tool for long-duration and continuous operations such as search and rescue, firefighting, and large-scale mapping. It can also avoid large obstacles like buildings and mountains at flight speeds of up to 25m/s.

Payload Capacity

The Matrice M400’s strong payload capacity allows it to easily meet the demands of a wide range of applications. With a maximum payload capacity of 6 kg, Matrice 400 supports seamless switching between a single downward gimbal and a dual downward gimbal. It also features a third gimbal connector on the underside for additional flexibility. Depending on the task, the Matrice M400 can be equipped with the Zenmuse H30 Series, L2, P1, S1 Spotlight, V1 Speaker, Manifold 3, or third-party payloads, thereby expanding its capabilities and unlocking the full potential of the DJI ecosystem.

IP55 Protection (Rainproof)

The M400 has a protection rating of IP55, allowing it to operate reliably in challenging conditions, including heavy dust or rain. It also maintains stable performance across temperatures from -20°C to 50°C, delivering consistent results in both hot and cold conditions.
